BBSHD 48V 1000W Bafang Mid-drive System

Bafang is the one of the most famous brand in mid-drive system industry, their products hot selling in Europe and North America.

  • BBSHD 1000W

  • Bafang

  • 1000W

  • /

  • BBSHD

  • Inside of the Motor

  • 45KM/H

  • /

  • Crank Set and Bottom Bracket Size

Availability:
Quantity:
Inquire Add to Basket

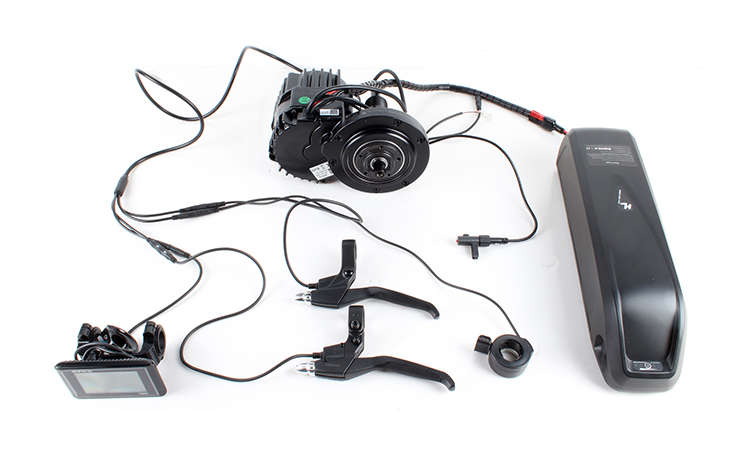

1. Bafang mid drive kit

How to install the 1000w BBSHD bafang mid drive kit




2. motor parameter


How to install the 1000w BBSHD bafang mid drive kit

Main Parameter
Rated Power
1000W
Rated Voltage
48V/52V
Construction
Gear drive
Speed
35~45km/h
n0 (Rpm)
160
nT(Rpm)
140/125
Max Torque
160 N.m
Efficiency
≥ 80%
Pedal Sensor
Speed
Shaft Standard
JIS
BB size
68/73/83/90/100/110/120mm
Noise Grade
< 55dB
Operating Temperature
-20-45℃
E-Brake
Yes
Gearsensor Function
Yes
Light Drive Capacity (DCV / W)
6/3(max)
Speed Detection Signal
1 Pulses / Cycle
Reduction Ratio
1: 21.9
Magnet Poles (2P)
8
IP
IP 65
Certifications
CE / EN 14764 / ROHS
Salt Spray Test Standard(h)
96

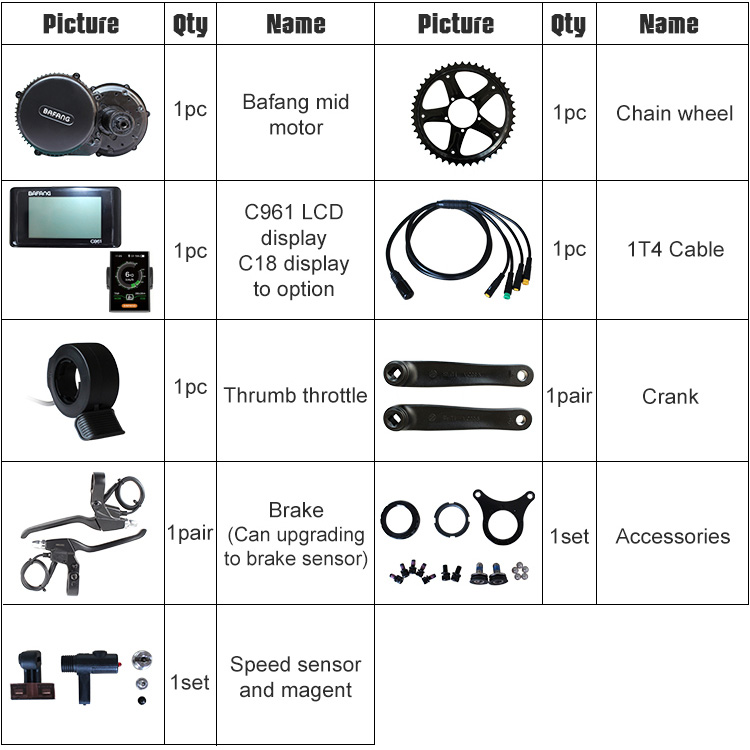

4. kit include




How to install the 1000w BBSHD bafang mid drive kitHow to install the 1000w BBSHD bafang mid drive kit


Quantity （pcs) Description
1 1000W BBSHD Mid Motor with Inside (BB Size 68-73mm)

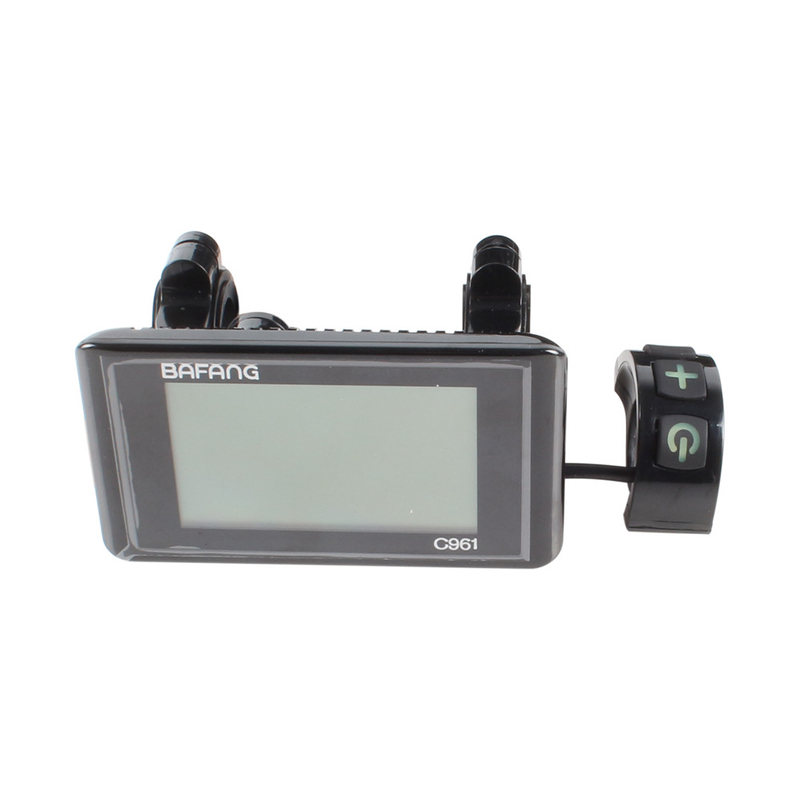

1 C961 LCD Display (DPC18, 850C can be optioned)
1 1-5 Levels Adjustment Speed Sensor

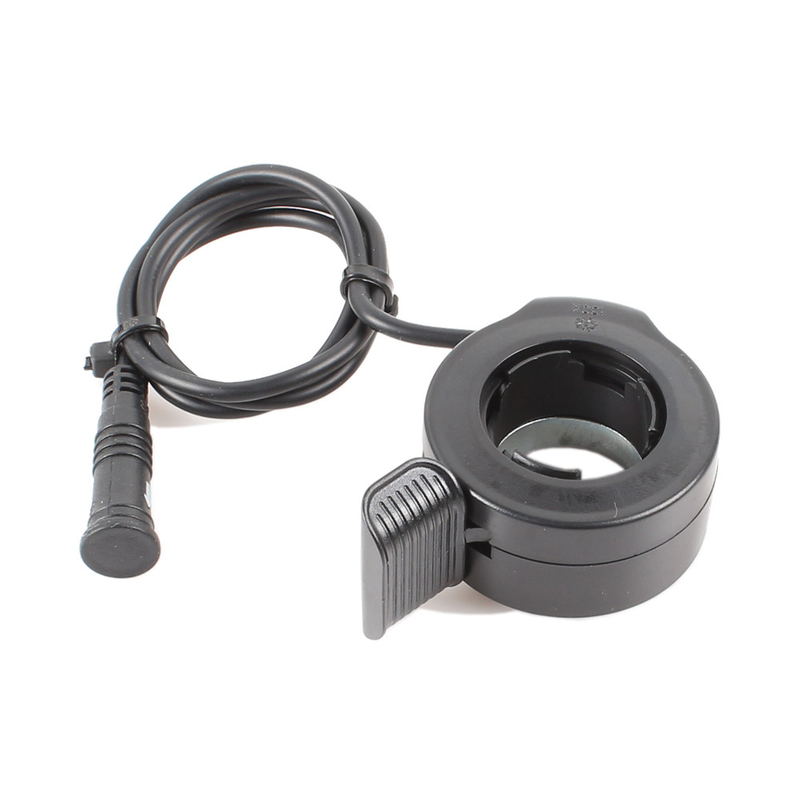

1 Thumb Throttle
2 46T Crank Set (44T can be optioned)

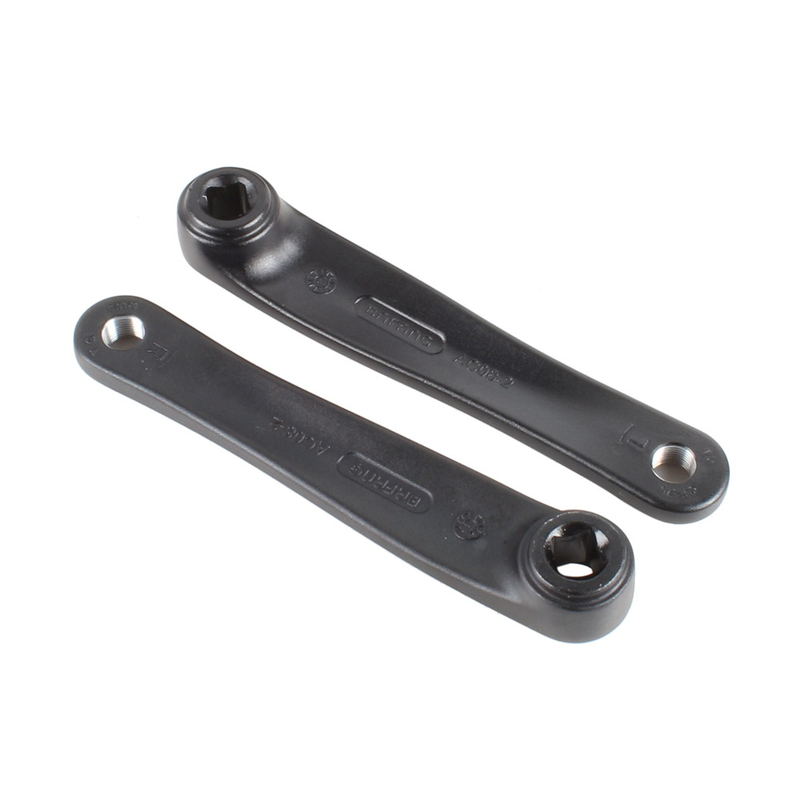

2 Crank Arms

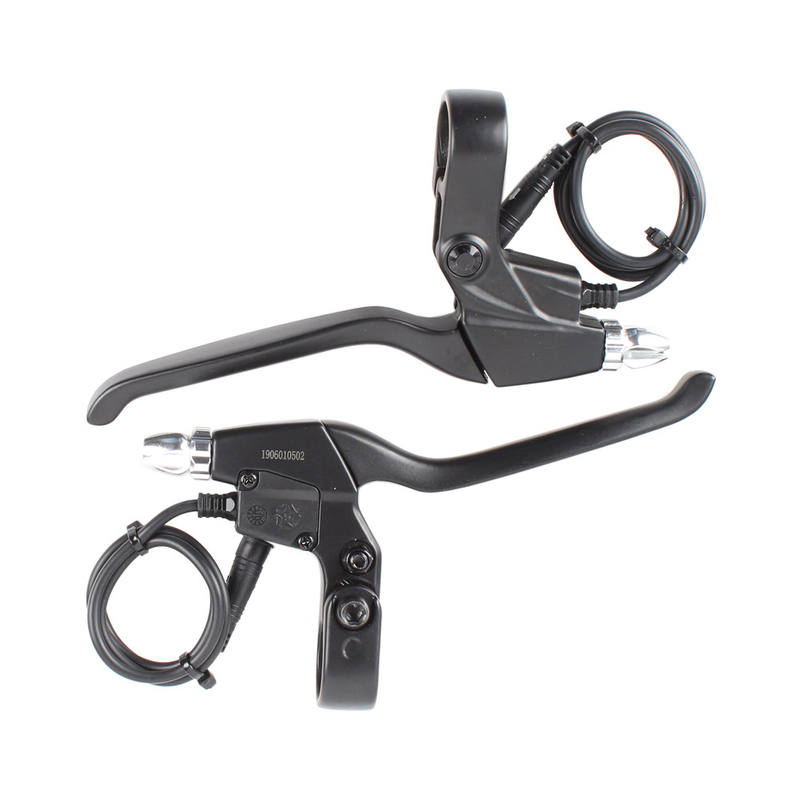

2 Brake Levers
1 Connected Cables
1 Assembly Accessories




5. How to install

How to install the 1000w BBSHD bafang mid drive kit

How to install the 1000w BBSHD bafang mid drive kit


6. FAQ



1. What is your warranty policy?
2 years (Guarantee replacement in first year, guarantee repair in the next year.)

2. Should I pay the high taxes?
We can make a low-value invoice to help you clearing customs and avoid the high taxes.

3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample.

4. What is the delivery time?
It usually takes 7-10 days, but the exact delivery time might be different for different quantity. Once we confirmed the all
details of order, we will put all source into it.

5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T. We'll show you the photos of the products and packages before you pay the balance.

6. How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit;
B: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
