BBS01 36V 250W Bafang Mid-drive System

Bafang is the one of the most famous brand in mid-drive system industry, the products hot selling in Europe and North America.

  • BBS01 250W

  • Bafang

  • 250W

  • /

  • BBS01

  • Inside of the Motor

  • 25-35KM/H

  • /

  • Crank Set, Display and Bottom Bracket Size

Availability:
Quantity:
Inquire Add to Basket


1. Bafang Mid Drive



2. Product parameter



Main Parameters
Rated Power
250W
Rated Voltage
36/48V
Construction
Gear drive
Speed
25-35km/h
n0 (Rpm)
83/87
nT(Rpm)
78/83
Max Torque
80 N.m
Efficiency
≥ 80%
Pedal Sensor
Speed
Shaft Standard
JIS
BB size
68mm
Noise Grade
< 55dB
Operating Temperature
-20-45℃
E-Brake
Yes
Gearsensor Function
Yes
Light Drive Capacity (DCV / W)
6/3(max)
Speed Detection Signal
1 Pulses / Cycle
Reduction Ratio
1: 21.9
Salt Spray Test Standard(h)
96



3. Parts


Quantity （pcs) Description
1 36V/48V 250W BBS01 Mid Motor with Inside (BB Size 68-73mm)
1 C961 LCD Display (DPC18, 850C can be optioned)
1 1-5 Levels Adjustment Speed Sensor
1 Thumb Throttle
2 46T Crank Set (44T can be optioned)
2 Crank Arms
2 Brake Levers
1 Connected Cables
1 Assembly Accessories



4. How to install

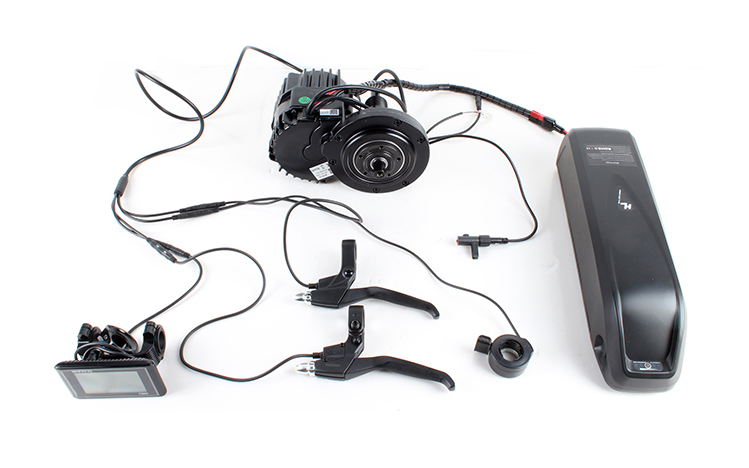

how to install the 250w bafang mid drive


5. FAQ


1. What is your warranty policy?
2 years (Guarantee replacement in first year, guarantee repair in the next year.)

2. Should I pay the high taxes?
We can make a low-value invoice to help you clearing customs and avoid the high taxes.

3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample.

4. What is the delivery time?
It usually takes 7-10 days, but the exact delivery time might be different for different quantity. Once we confirmed the all
details of order, we will put all source into it.

5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T. We'll show you the photos of the products and packages before you pay the balance.

6. How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit;
B: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
