2. motor parameter
Main Parameters | |
Rated Power | 350w |
Rated Voltage | 36/48V |
Construction | Gear drive |
Speed | 25-35km/h |
n0 (Rpm) | 83/87 |
nT(Rpm) | 78/83 |
Max Torque | 80 N.m |
Efficiency | ≥ 80% |
Pedal Sensor | Speed |
Shaft Standard | JIS |
BB size | 68mm |
Noise Grade | < 55dB |
Operating Temperature | -20-45℃ |
E-Brake | Yes |
Gearsensor Function | Yes |
Light Drive Capacity (DCV / W) | 6/3(max) |
Speed Detection Signal | 1 Pulses / Cycle |
Reduction Ratio | 1: 21.9 |
Salt Spray Test Standard(h) | 96 |

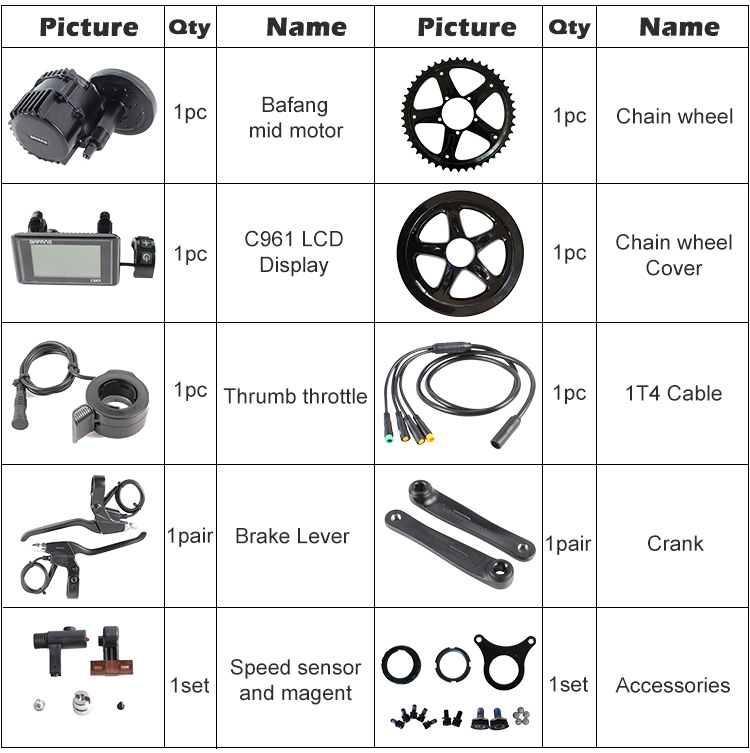

Quantity (pcs) | Description |
1 | 36V 350W BBS01 Mid Motor with Inside (BB Size 68-73mm) |
1 | C961 LCD Display (DPC18, 850C can be optioned) |
1 | 1-5 Levels Adjustment Speed Sensor |
1 | Thumb Throttle |
2 | 46T Crank Set (44T can be optioned) |
2 | Crank Arms |
2 | Brake Levers |
1 | Connected Cables |
1 | Assembly Accessories |
2. motor parameter
Main Parameters | |
Rated Power | 350w |
Rated Voltage | 36/48V |
Construction | Gear drive |
Speed | 25-35km/h |
n0 (Rpm) | 83/87 |
nT(Rpm) | 78/83 |
Max Torque | 80 N.m |
Efficiency | ≥ 80% |
Pedal Sensor | Speed |
Shaft Standard | JIS |
BB size | 68mm |
Noise Grade | < 55dB |
Operating Temperature | -20-45℃ |
E-Brake | Yes |
Gearsensor Function | Yes |
Light Drive Capacity (DCV / W) | 6/3(max) |
Speed Detection Signal | 1 Pulses / Cycle |
Reduction Ratio | 1: 21.9 |
Salt Spray Test Standard(h) | 96 |
Quantity (pcs) | Description |
1 | 36V 350W BBS01 Mid Motor with Inside (BB Size 68-73mm) |
1 | C961 LCD Display (DPC18, 850C can be optioned) |
1 | 1-5 Levels Adjustment Speed Sensor |
1 | Thumb Throttle |
2 | 46T Crank Set (44T can be optioned) |
2 | Crank Arms |
2 | Brake Levers |
1 | Connected Cables |
1 | Assembly Accessories |
