24v 36v 250w Brushless Geared Hub Motor Kit Front And Rear Wheel Electric Bike Conversion Kit

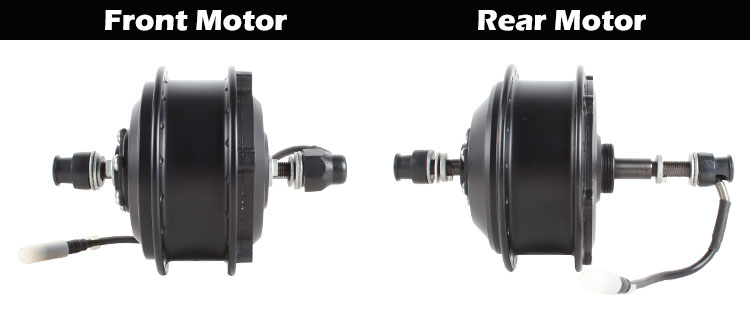

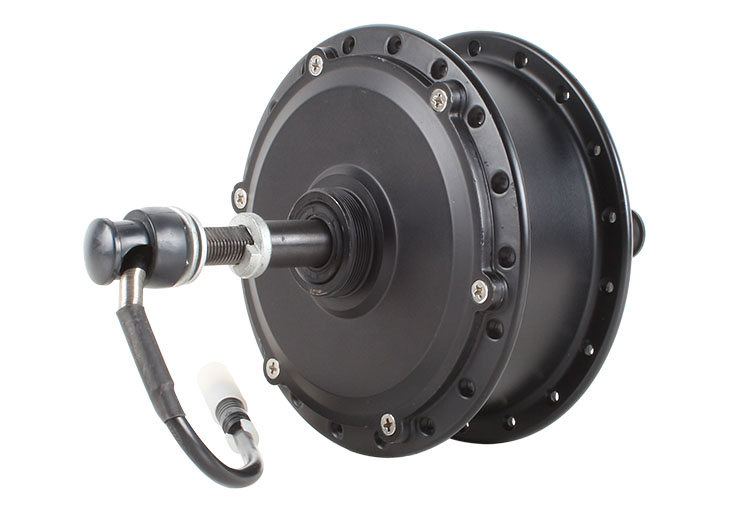

1. kit picture

2. Parameter

Rated voltage	24V/36V
Rated power	250w
Motor type	Brushless Geared hub Motor
Controller	Brushless Smart Controller
Dropout size	100-135mm
Wheel size	16" 20" 24" 26" 27.5" 700C 28" 29"
Rated Speed	20-25km/h
Rated Efficiency	>=83%
Reduction Ratio	1:4.4
Waterproof Grade	IP54
Noise (db)	< 50

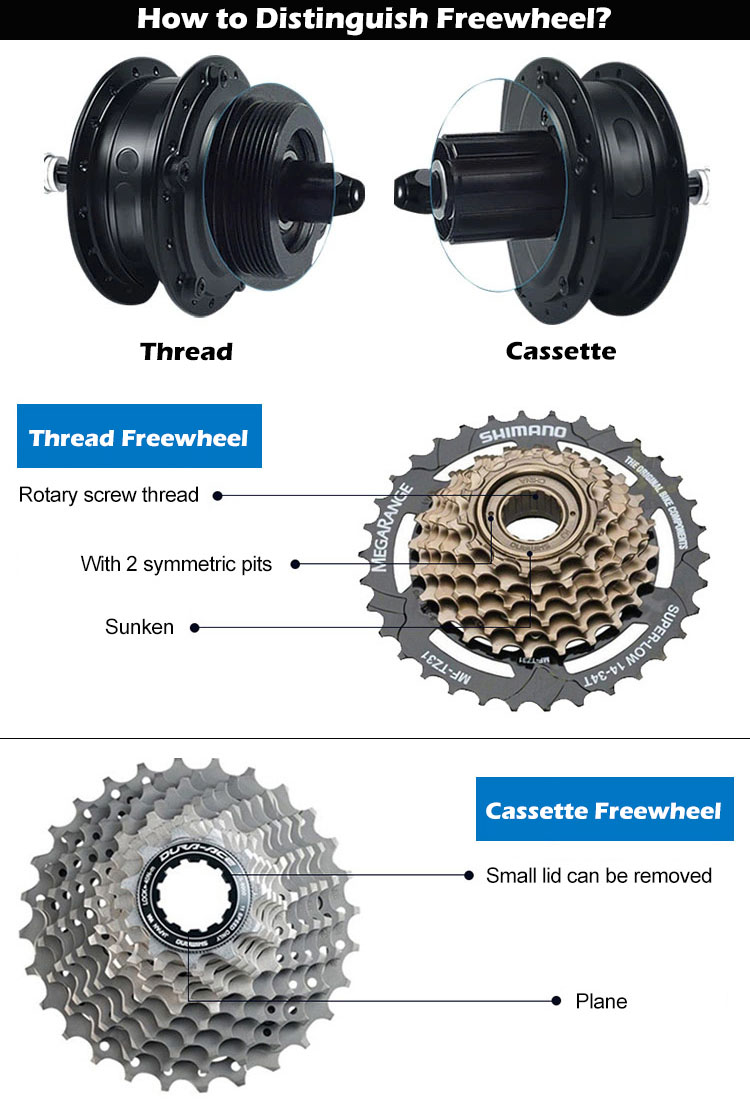

Optional parts	Freewheel, Tyre, Head light, Disc brake, etc
Warranty	2 year

3. kit include

1 * 36v 250w Brushless Geared Hub Motor with Rim (16'' 20" 24" 26" 700C 28" 29")

1 * New design smart controller for 36v 250w hub motor

1 * Thumb Throttle (Twist Throttle for optional）

1 * SW900 LCD display(color display for optional)

2 * Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)

1 * 12 Magnets Pedal Assistant Sensor

1 * Connecting Cable for 24v/36v 250w electric bike kit

1 * Lithium Battery (24v/36v and capacity optional)

5. How to install

6. Detail For Reference

            (There are differences between different kits)

7. parts for bike kit

8. About

9. Customer's show
