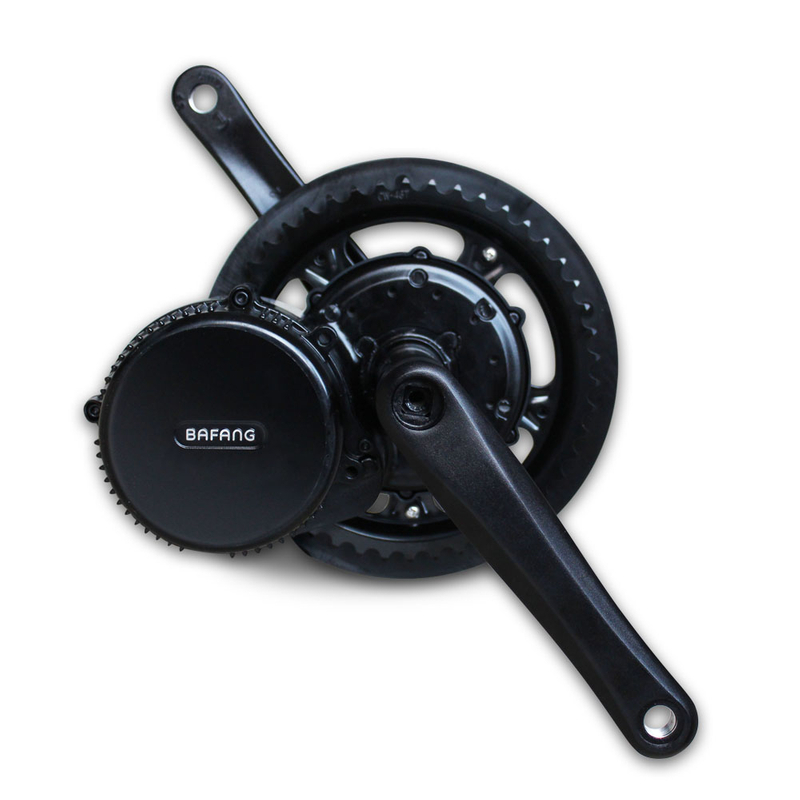

BBS02 500W
Bafang
500W
/
BBS02
Inside of the Motor
25-35KM/H
/
Crank Set, Display and Bottom Bracket Size
Availability: | |
---|---|
Quantity: | |
2.motor parameter
Main Parameters | |
Rated Power | 500W |
Rated Voltage | 48V |
Construction | Gear drive |
Speed | 25-35km/h |
n0 (Rpm) | 120/126 |
nT(Rpm) | 113/118 |
Max Torque | 100 N.m |
Efficiency | ≥ 80% |
Pedal Sensor | Speed |
Shaft Standard | JIS |
BB size | 68mm |
Noise Grade | < 55dB |
Operating Temperature | -20-45℃ |
E-Brake | Yes |
Gearsensor Function | Yes |
Light Drive Capacity (DCV / W) | 6/3(max) |
Speed Detection Signal | 1 Pulses / Cycle |
Reduction Ratio | 1: 21.9 |
Salt Spray Test Standard(h) | 96 |
Quantity (pcs) | Description |
1 | 48V 500W BBS02 Mid Motor with Inside (BB Size 68-73mm) |
1 | C961 LCD Display (DPC18, 850C can be optioned) |
1 | 1-5 Levels Adjustment Speed Sensor |
1 | Thumb Throttle |
2 | 46T Crank Set (44T can be optioned) |
2 | Crank Arms |
2 | Brake Levers |
1 | Connected Cables |
1 | Assembly Accessories |
2.motor parameter
Main Parameters | |
Rated Power | 500W |
Rated Voltage | 48V |
Construction | Gear drive |
Speed | 25-35km/h |
n0 (Rpm) | 120/126 |
nT(Rpm) | 113/118 |
Max Torque | 100 N.m |
Efficiency | ≥ 80% |
Pedal Sensor | Speed |
Shaft Standard | JIS |
BB size | 68mm |
Noise Grade | < 55dB |
Operating Temperature | -20-45℃ |
E-Brake | Yes |
Gearsensor Function | Yes |
Light Drive Capacity (DCV / W) | 6/3(max) |
Speed Detection Signal | 1 Pulses / Cycle |
Reduction Ratio | 1: 21.9 |
Salt Spray Test Standard(h) | 96 |
Quantity (pcs) | Description |
1 | 48V 500W BBS02 Mid Motor with Inside (BB Size 68-73mm) |
1 | C961 LCD Display (DPC18, 850C can be optioned) |
1 | 1-5 Levels Adjustment Speed Sensor |
1 | Thumb Throttle |
2 | 46T Crank Set (44T can be optioned) |
2 | Crank Arms |
2 | Brake Levers |
1 | Connected Cables |
1 | Assembly Accessories |
