5000w Brushless Direct Hub Motor Kit Front And Rear Wheel Electric Bike Conversion Kit

1. kit picture

2.  Motor parameter

Rated voltage	60/72V
Rated power	5000W
Motor type	Brushless Direct hub Motor
Controller	Brushless Smart Controller
Dropout size	155-190mm
Wheel size	20'' 24'' 26" 27.5" 700C 28" 29‘’
Rated Speed	80-90km/h
Rated Efficiency	>=83%
Freewheel	6-7s Thread / 8-10s Cassette
Waterproof Grade	IP54
Noise (db)	< 50
Optional parts	Freewheel, Tyre, Head light, Disc brake, etc
Warranty	2 year

4. kit include?

1 * 5000w hub motor with Rim (20" 24" 26" 27.5" 700C 28" 29")

1 * New design smart controller for the 60/72v 5000w ebike kit

1 * Thumb Throttle (Twist Throttle for optional）

1 * SW900 LCD display(color display for optional)

2 * Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)

1 * 12 Magnets Pedal Assistant Sensor

1 * Connecting Cable for the 5000w ebike conversion kit

1 * Lithium Battery (Optional) for the 60/72v 5000w ebike kit

5. How to install

6.  Parts Detail For Referenc

            (There are differences between different kits)

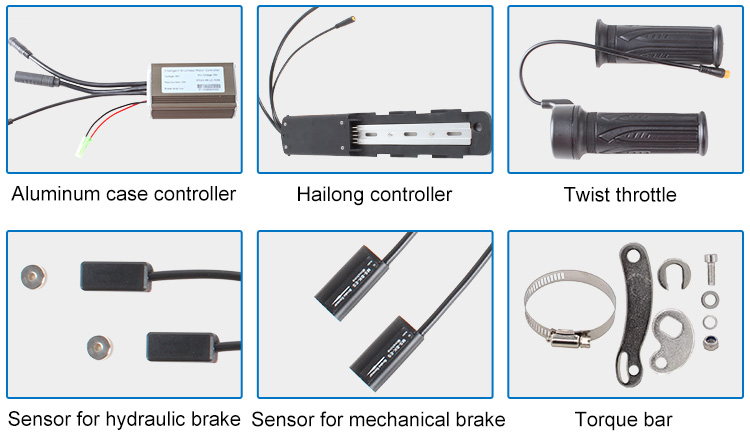

7.parts for bike kit

8. About

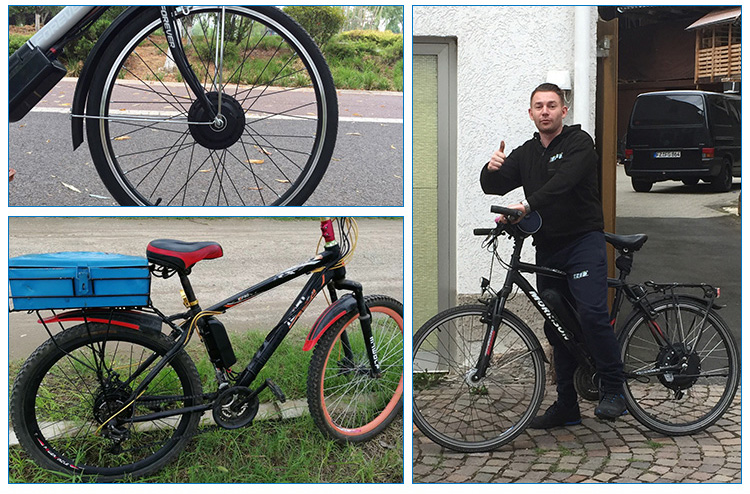

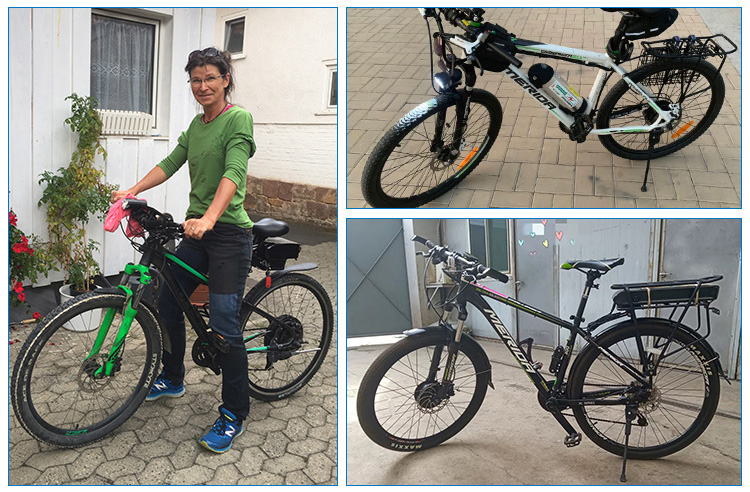

9. Customer's show
