Step By Step Bafang Mid-dirve Installation

Views: 9     Author: Site Editor     Publish Time: 2023-03-08      Origin: Site

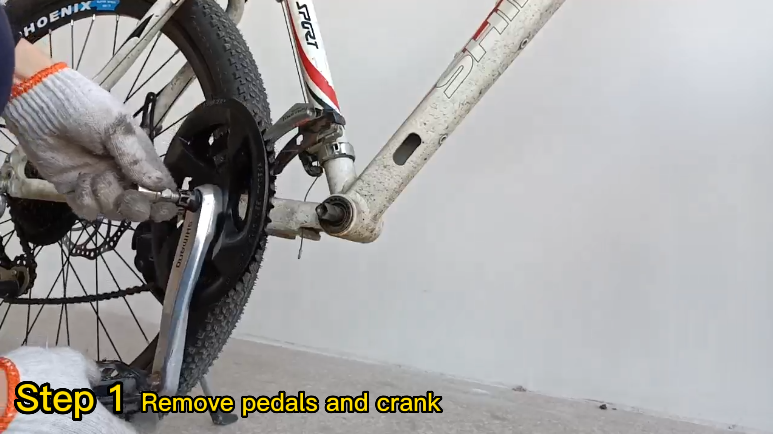

Step 1 remove pedals and crank


we need to change the pedals to the new crank , but sometimes it's very hard to tear down , so i choose to buy a new pair .


bafang

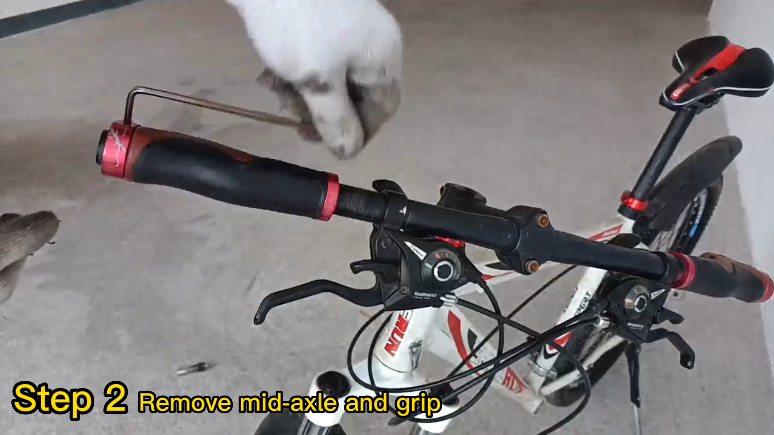

Step 2 remove mid-axle and grip


different mid-axle need fifferent tools , use the suitable tool .



bafang


you need to install the throttle , left or right ? you choose . if your regions not allowed throttle , you don't need to remove the grip .


bafang

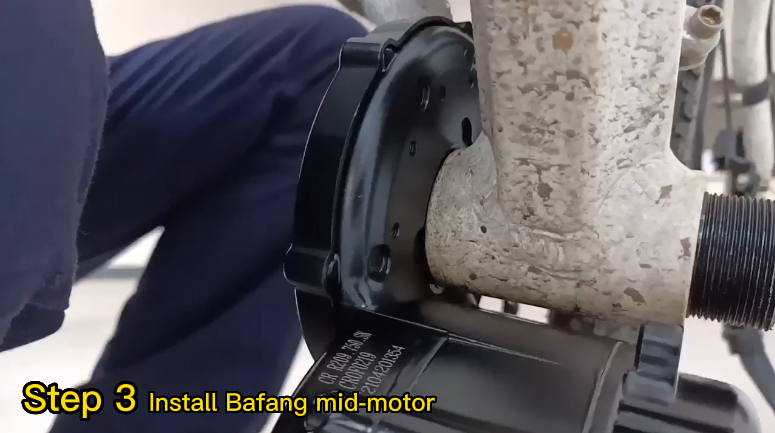

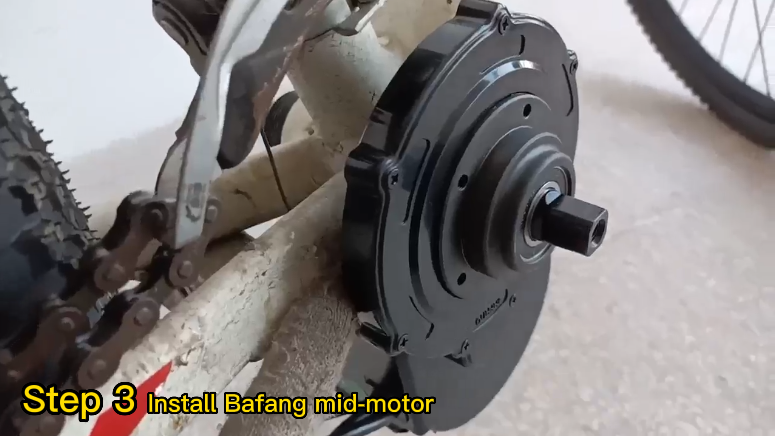

Step 3 install bafang motor

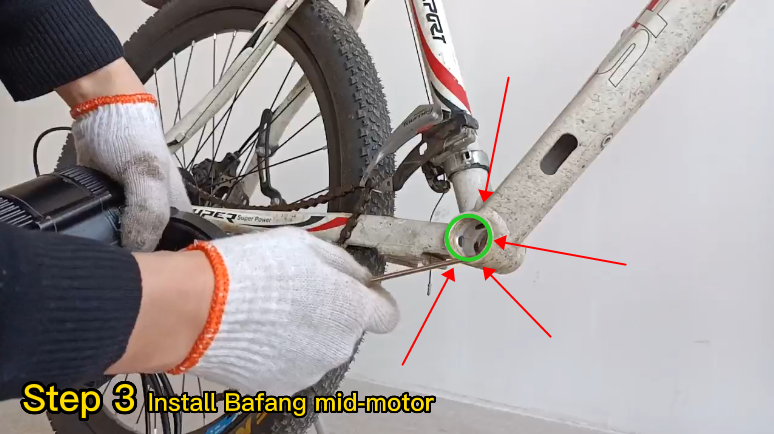

when install the motor , make sure the bottom bracket must touch the groove of the motor


bafang


bafang


bafang


never let the chainstay touch the shoulder of the motor


bafang


if it does,that might cause damege to the internal gear , here is a big gear inside .


bafang



Also , remember lifting the motor upper if the motor in low position , the motor will more likely be hited in some tough terrains .



bafang

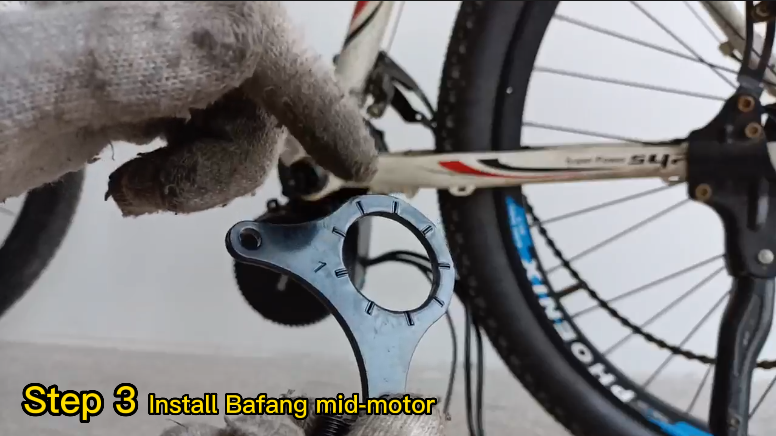

then , tight this plate ,this towards inside,



bafang

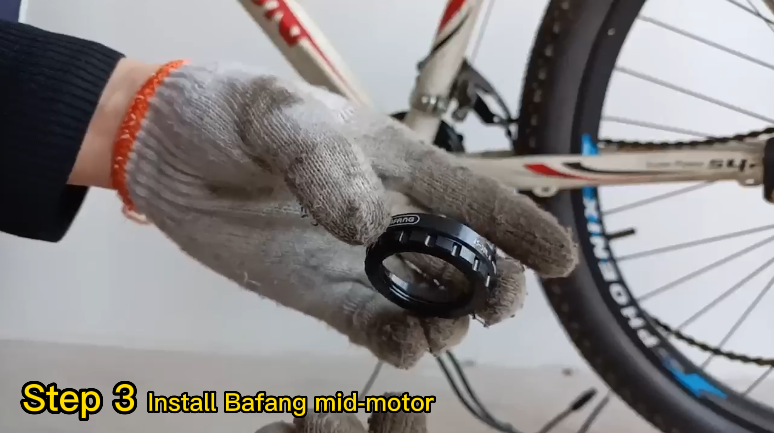

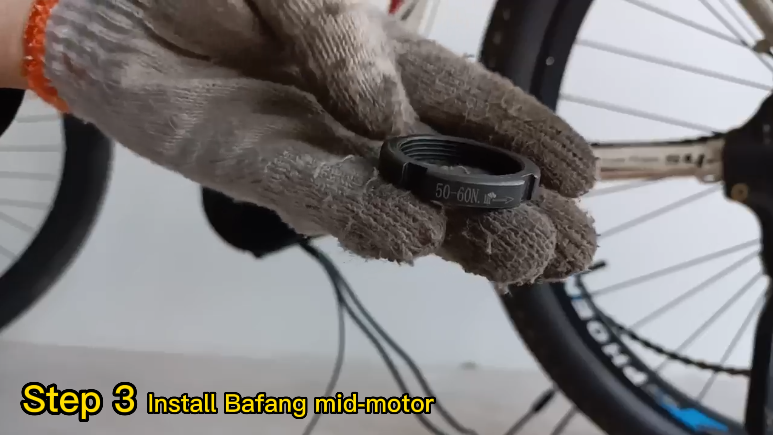

next nut , this nut is very important , after we tight the plate , there might be little gap between the bottom bracket .


bafang


bafang

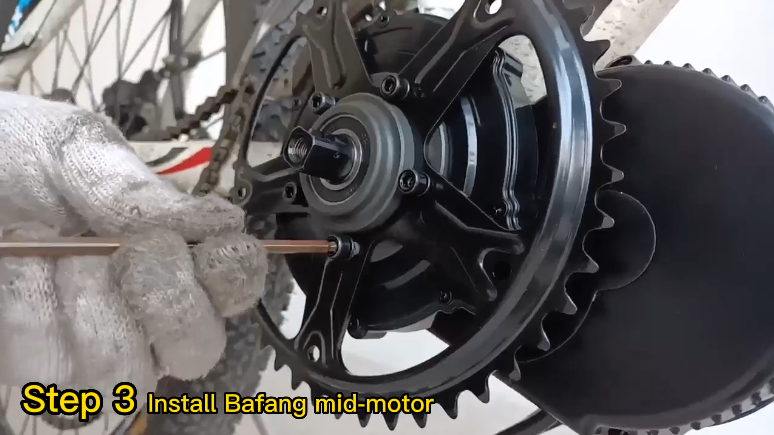

after that , install the chain wheel ...... this is the chain wheel cover ,i don't need that .


bafang


then ,install the crank and pedal , pay attention to the left or right marked at here .



bafang

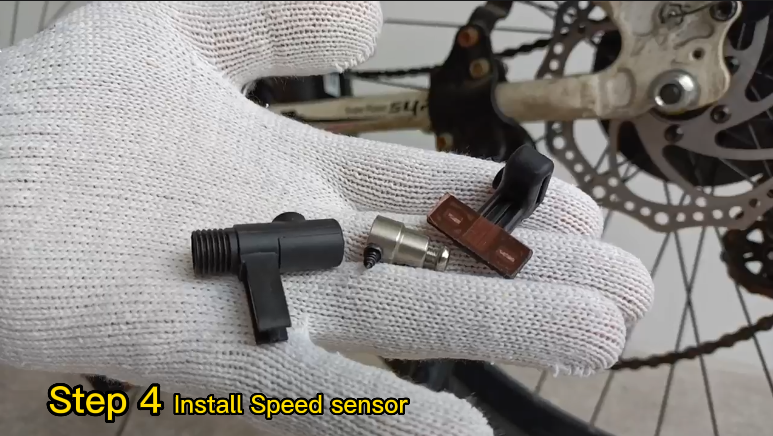

Step 4 install speed sensor


the gap between sensor and magnet should no more than 2mm .


bafang


bafang



Step 5 install display


many people would mount it at the middle of the handle bar , some may left or right , i prefer left , but there is not enough space .


bafang

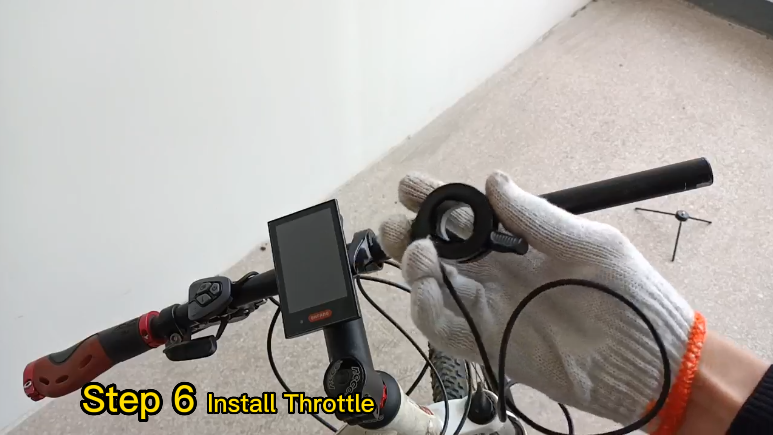

Step 6 install throttle


careful if your regions not allowed the throttle .


bafang

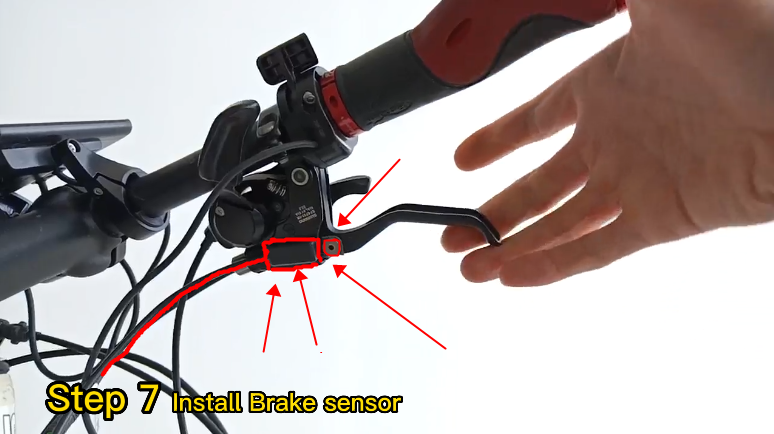

Step 7 install brake sensor


i found a perfect place for the sensor



bafang



Step 8 install the battery

this is a down tube battery , the battery base can be installed on the down tube , plug the battery , locked , power on .


bafang

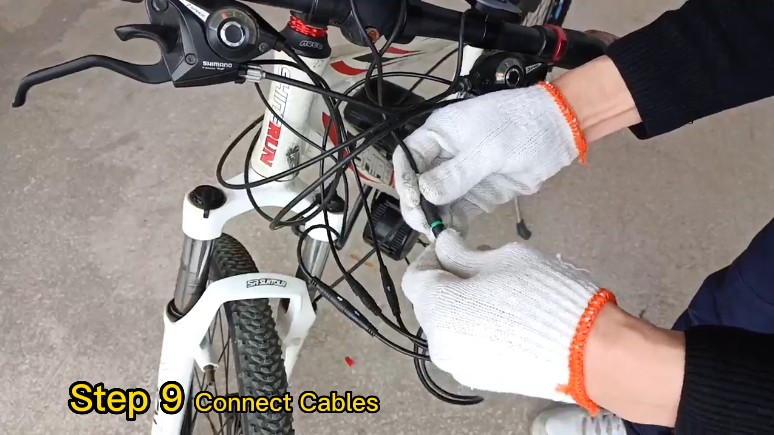

Step 9 connect cables


colour to colour , pair to pair , follow the arrow , very easy .

attention : 1 to 4 cable keep enough length at front ,rotate the handle bar for 180 degree , it must loose ,if it too tight , that will damege the cable while fall down .



bafang

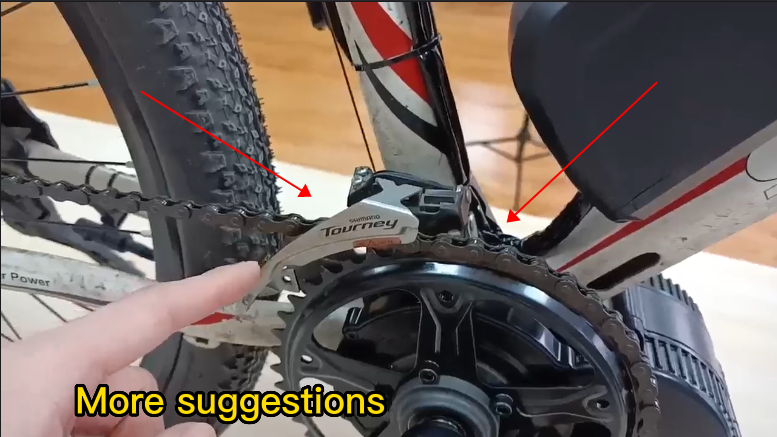

i suggest you install the front chain guide , if you don't have it ,when you in tough ride on bumping terrains and you are shifting gears , the chain might fall off.



bafang



It's very important for you to shift gears while riding with mid drive . i will make a video only about that .

the motor wires should be carefully passed , you can pass around the ,motor ,



bafang

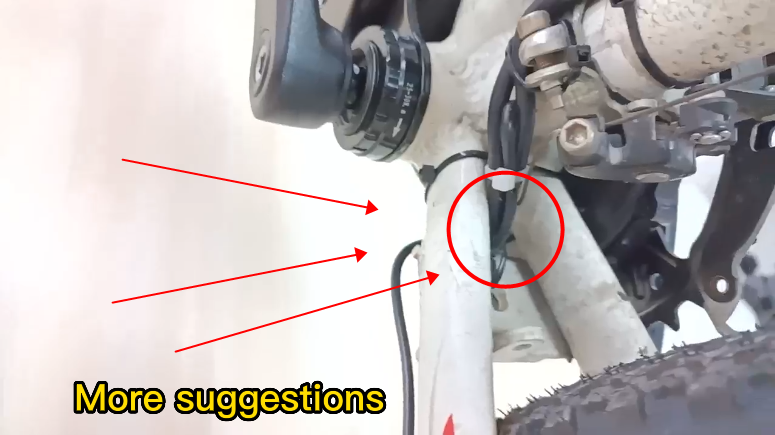

or pass inside the chainstay if have enough space . but be careful zip the wires tightly and keep away from the wheel .



bafang



Do not pass the wire between the motor and frame ,sometimes if the motor come to loose after crash or tough pedaling , the wires might be crashed by the motor , and cause electronic short circuit , you may lost the entire system .

Also , never pass the wire under the motor , some bump terrains may hit the wires .
